Elekit TU-8400 tube amp kit NEW
Elekit TU-8400 tube amp kit NEW
Now shipping

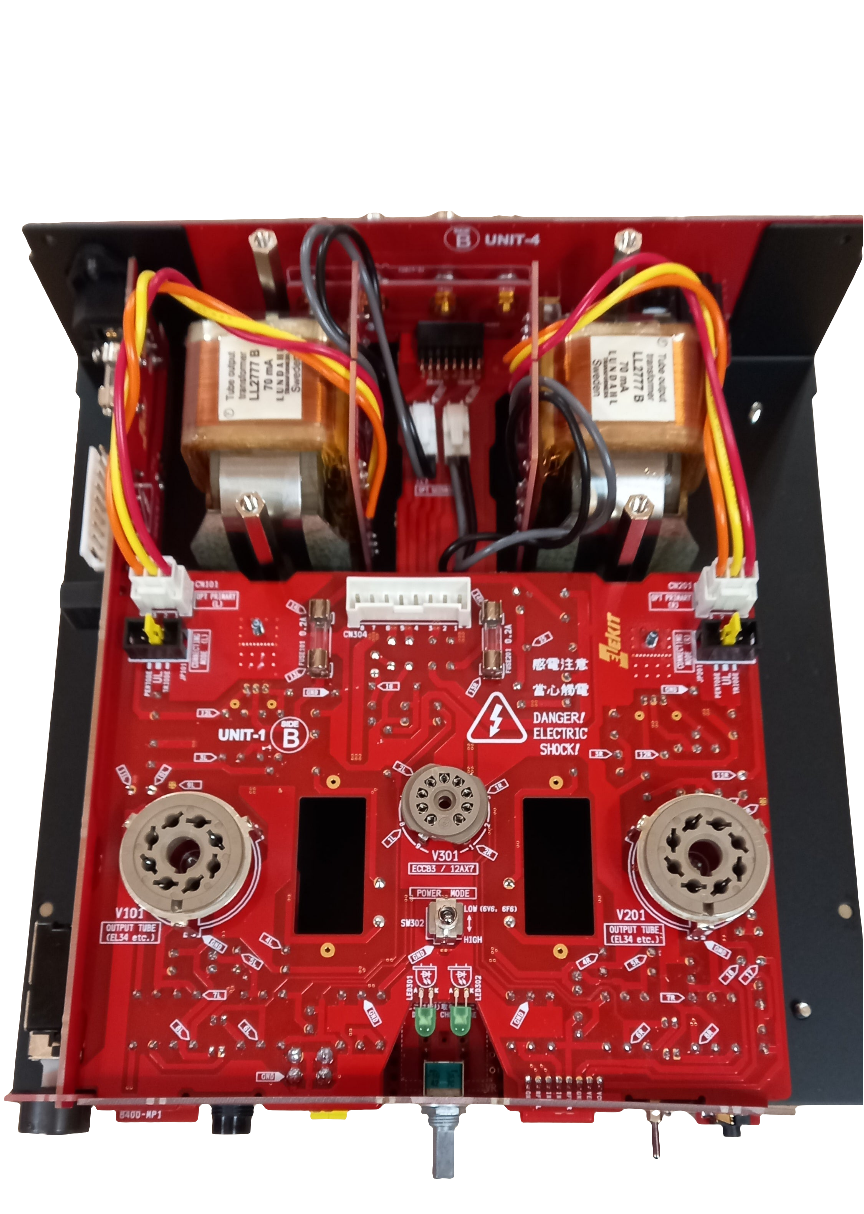

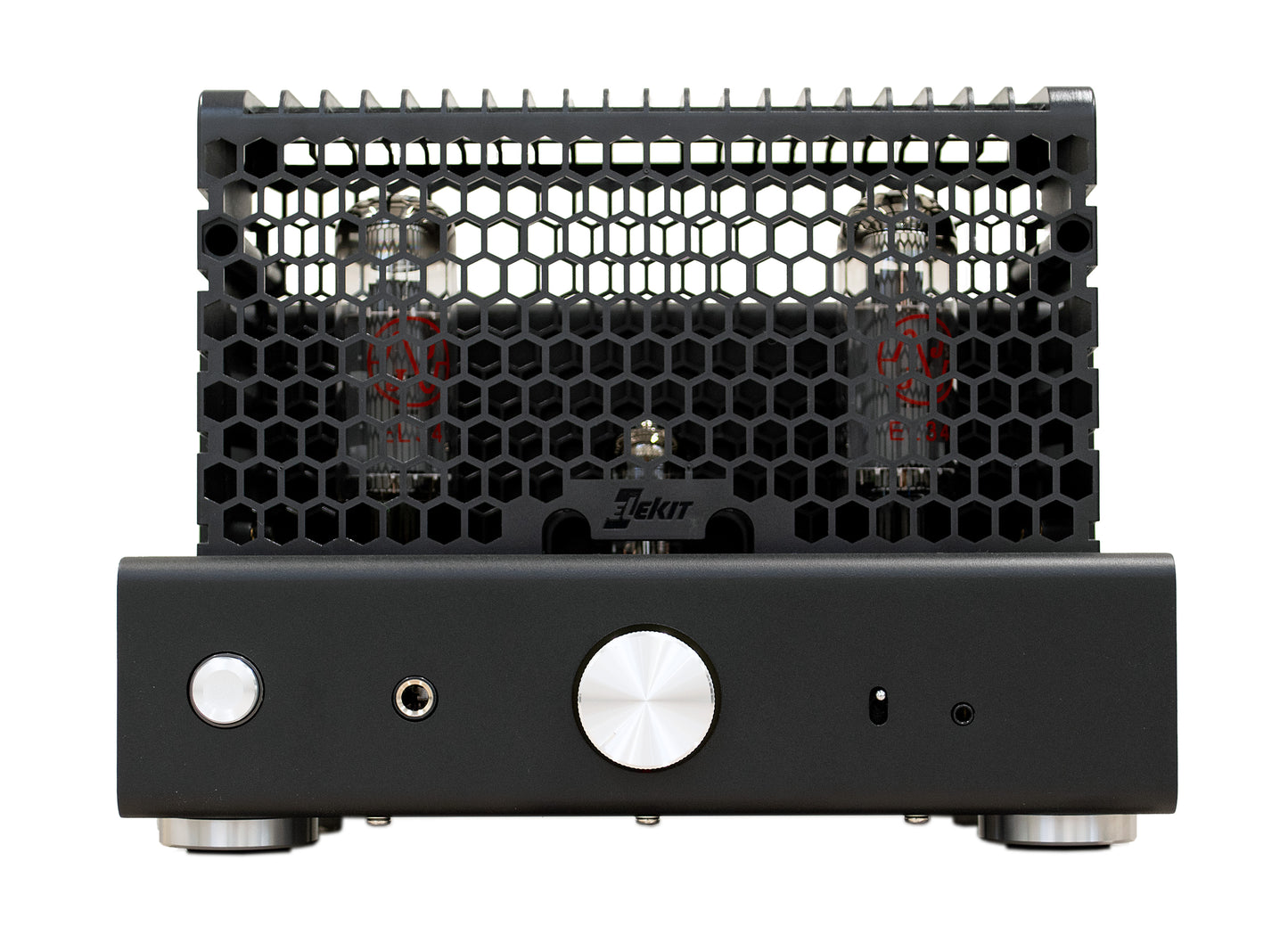

The successor to the very popular TU-8200R power amp kit, the TU-8400 is another impressive example of single ended tube amp design by Elekit of Japan.
Designed on the same compact footprint as the TU-8200R (one square foot) the TU-8400 presents in an all black livery for a striking visual impact.
Elekit's active automatic bias adjustment and a new power switching mode provides immediate support for a wide range of pentode tubes, from 6V6 to KT170 as well as mid power pentode tubes such as 6L6, EL34(6CA7), KT77, and KT88.
The kit is therefore supplied without tubes. A tube set option is available: see product listing tu-8400-tube-set.
Maintained is the ability to select Triode, Ultralinear or Pentode mode operation.
The TU-8400 is primarily a power amp designed to be used with a preamplifier. The amp also has an inbuilt Op-amp supporting the front mounted 3.5mm input for smart device connection.
A highly effective FET ripple filter design eliminates hum with individual filters for each channel.
Required tube complement is:
- Voltage amplifying tube 12AX7 (ECC83, 7025) x 1pc
- Output tubes x 2 pcs
Specifications:
*The values are representative values and not guaranteed values.
Model No. TU-8400
Tubes : Voltage amplifying tube : 12AX7 (ECC83, 7025) x 1pc
Output tube : 6L6 series, 5881, 7581, KT66, KT77, EL34(6CA7), WE350B, 6550, KT88, KT90, KT120, KT150, KT170, etc … HIGH mode
6V6, 6F6, etc … LOW mode
*Not included
Circuit configurations, etc Vacuum Tube Stereo Power amplifier
Output stage A-class, Single-ended, Active automatic bias (low-dissipation automatic biasing)
Heater power AC-power

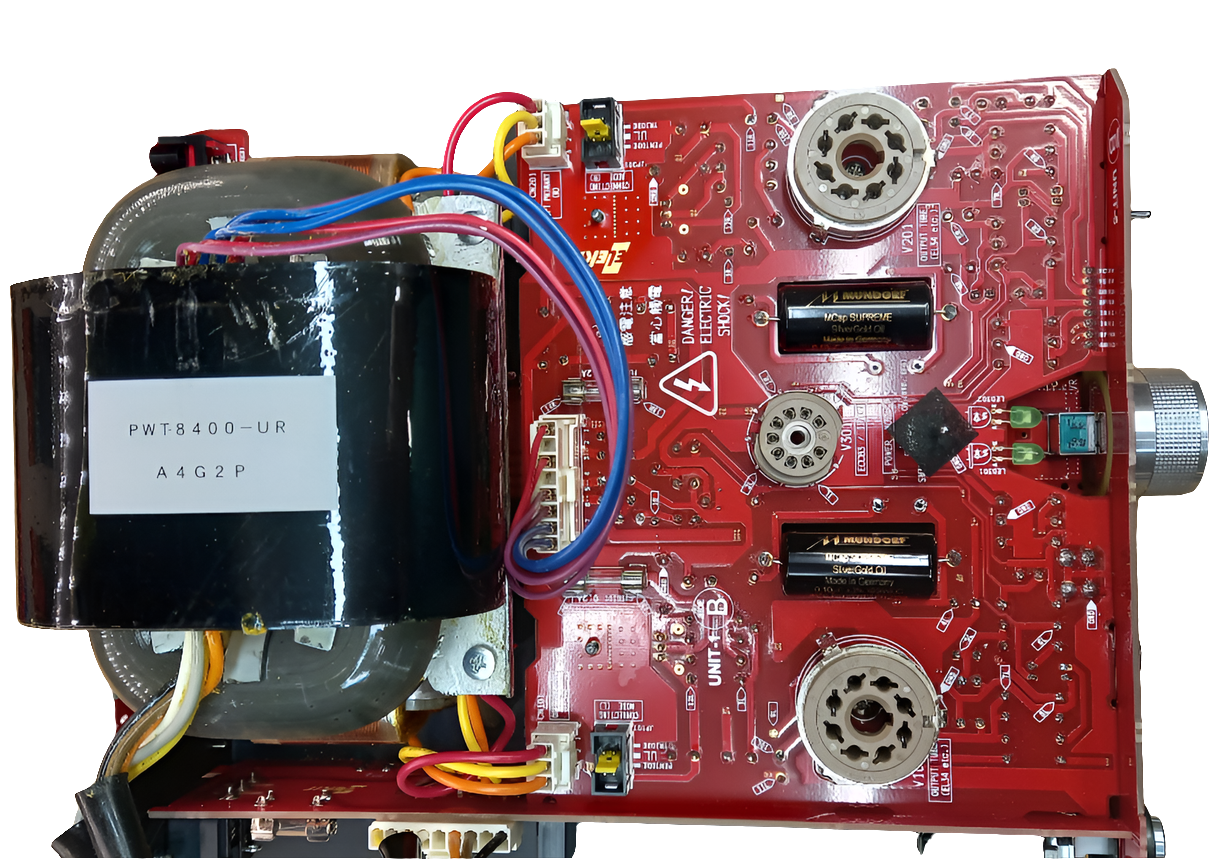

B-power : MOSFET ripple filter (right and left channel independently, with fuse)

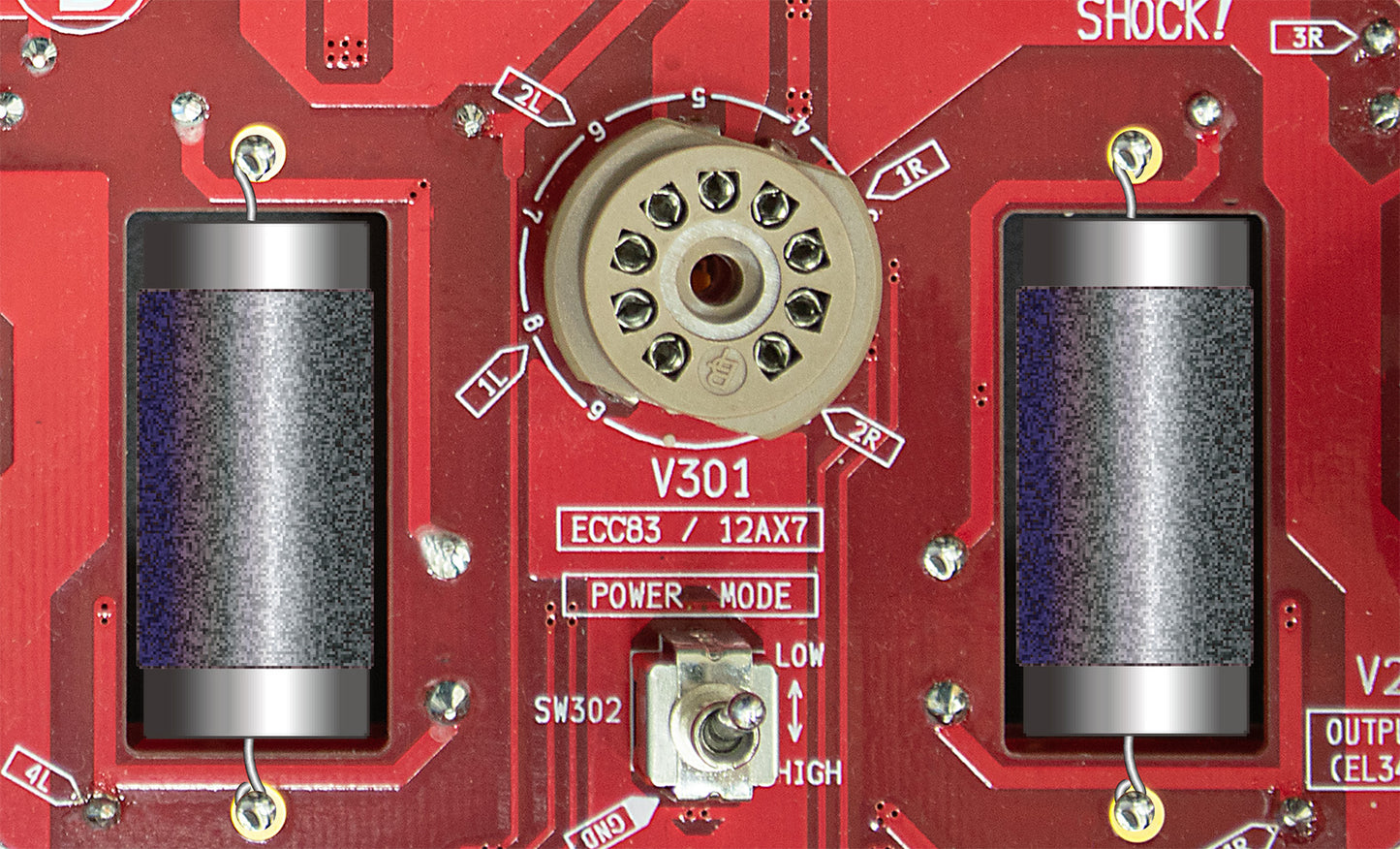

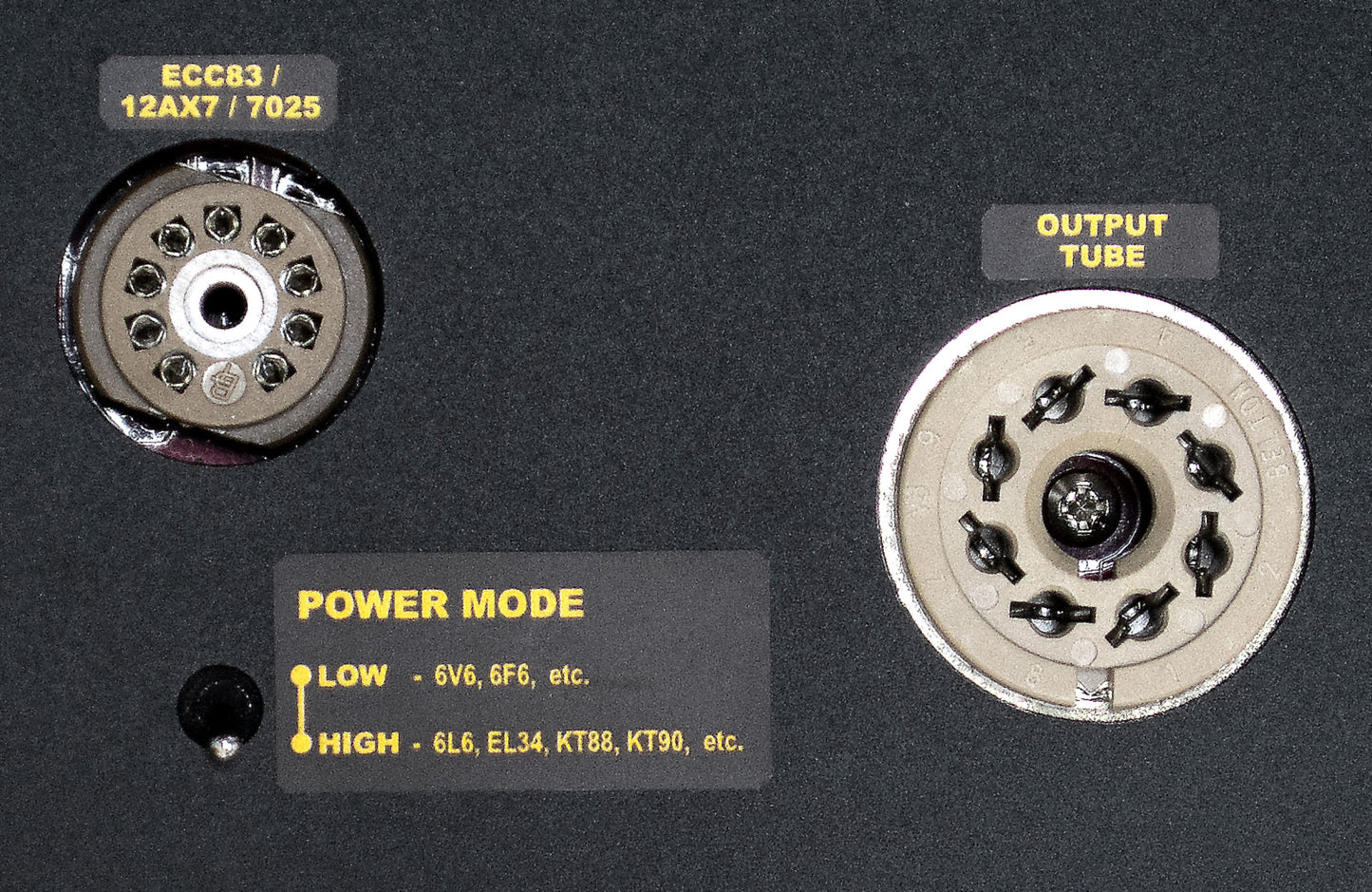

Mode : [Power mode] LOW, HIGH

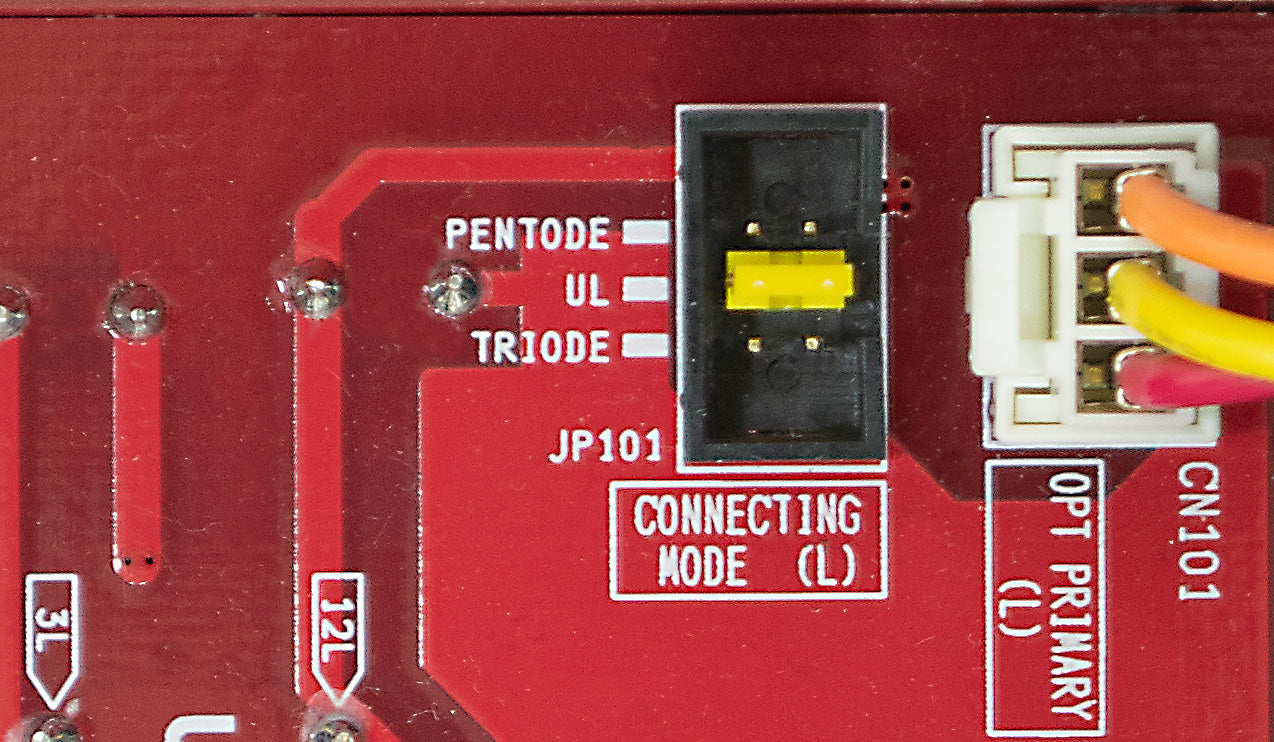

[Output tube connection mode] UL(Ultra-linear, recommended), TRIODE, PENTODE
Max.output [HIGH mode] 2 x 9.8W(KT170), 2 x 8.6W(KT88), 2 x 8W(EL34), 2 x 7W(6L6)
[LOW mode] 2 x 3.3W(6V6), 2 x 2.6W (6F6)
(UL, 8ohm load, THD10%)
Rated input : [INPUT-1] 850mV rms
[INPUT-2] 225mV rms
(HIGH mode, UL, EL34)
Frequency response : 20-50,000Hz
(-3dB, UL)
Residual noise : 27uV rms
(IHF-A, 8ohm load, UL, HIGH)

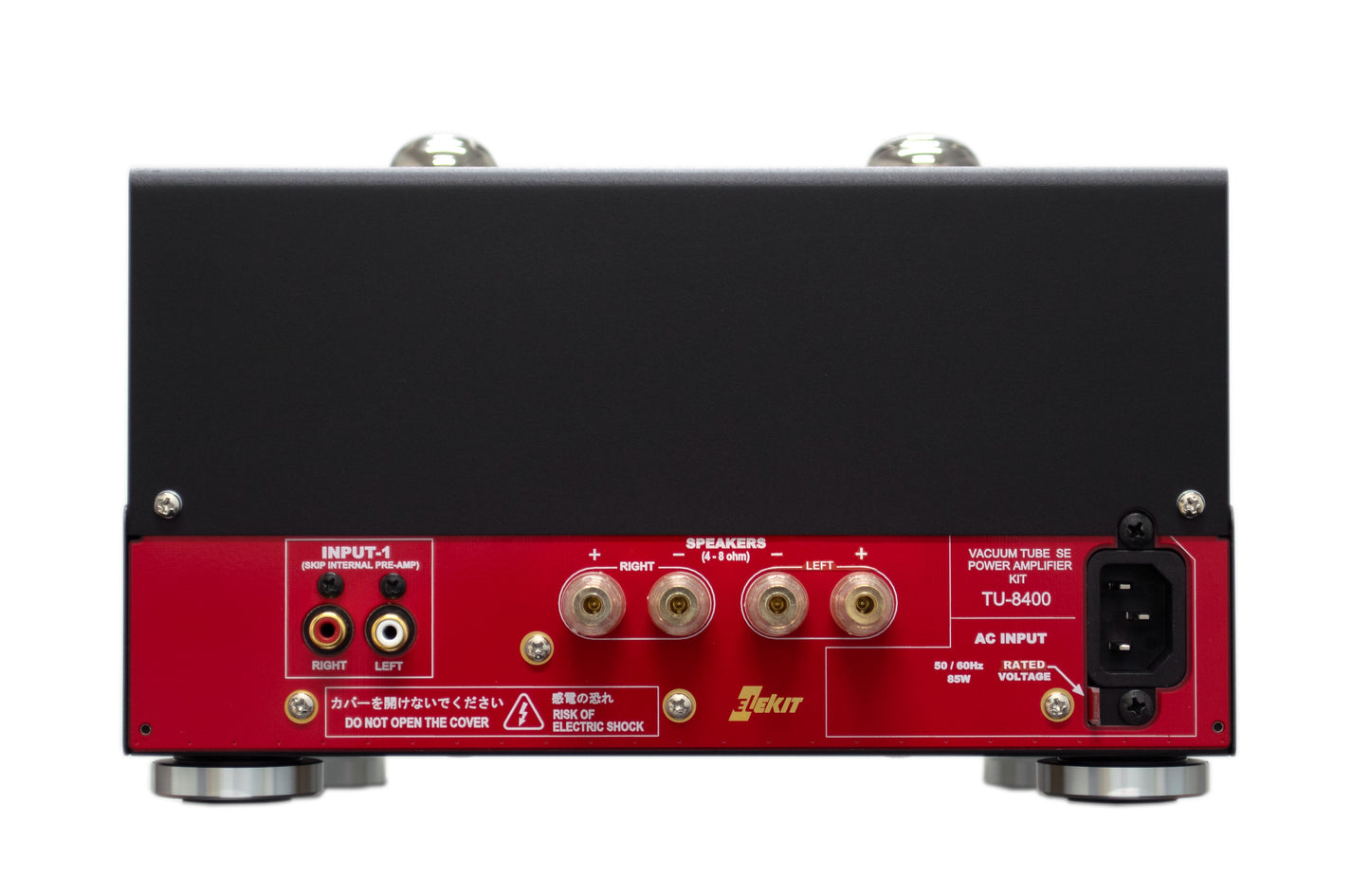

Input terminal : [INPUT-1] RCA jack (back side), input resistance approx.50hohm
[INPUT-2] 3.5mm 3-pole mini jack, input resistance approx.12kohm
Output terminal : Biding terminal (Gold-plated, banana-plug compatible)

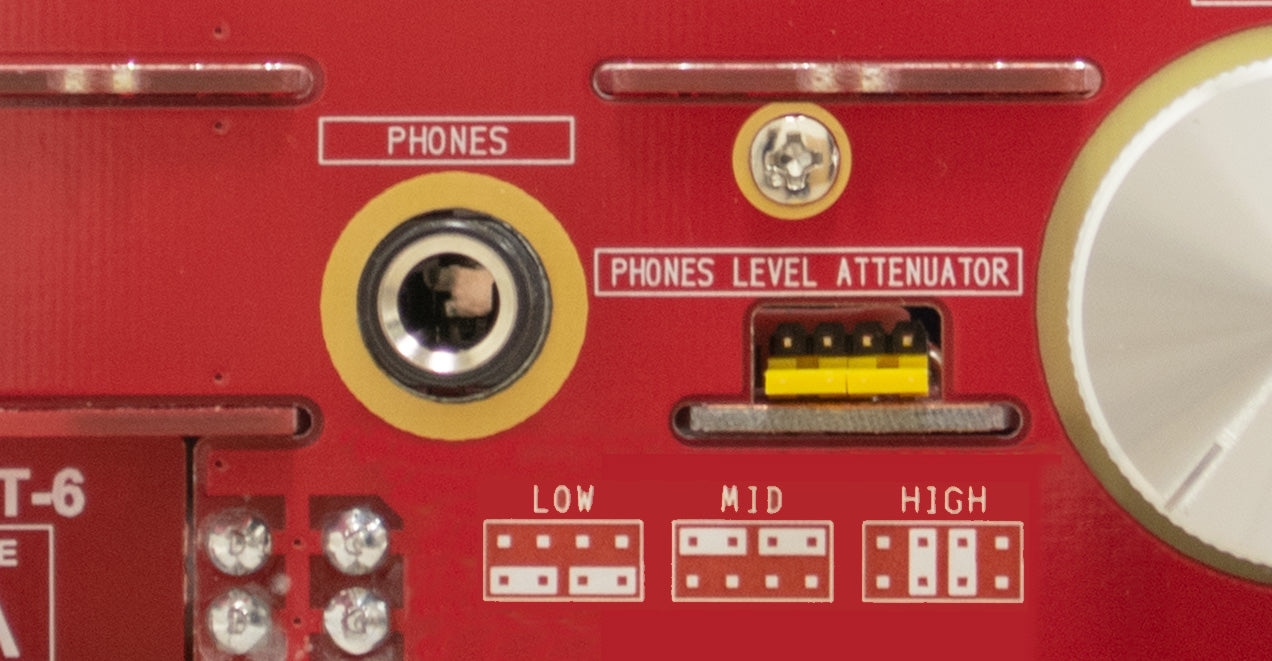

Headphone output : 3-pole standard (diameter 6.3mm) jack
Speaker impedance : 4-16ohm
Headphone impedance : 8-600ohm (corresponds to high impedance headphones as well), unbalanced
Power voltage : AC110-120V or AC220-240V, 50/60Hz
IEC standard 3P inlet type
Rated power consumption : 80W (HIGH mode, KT170), 71W (HIGH mode, EL34), 36W (LOW mode, 6V6)
Dimensions : W252 x H286 x D286 mm (with safety cover, incl. projections)
Weight : Approx.6.6kg (assembled, excl. tubes and AC cord)

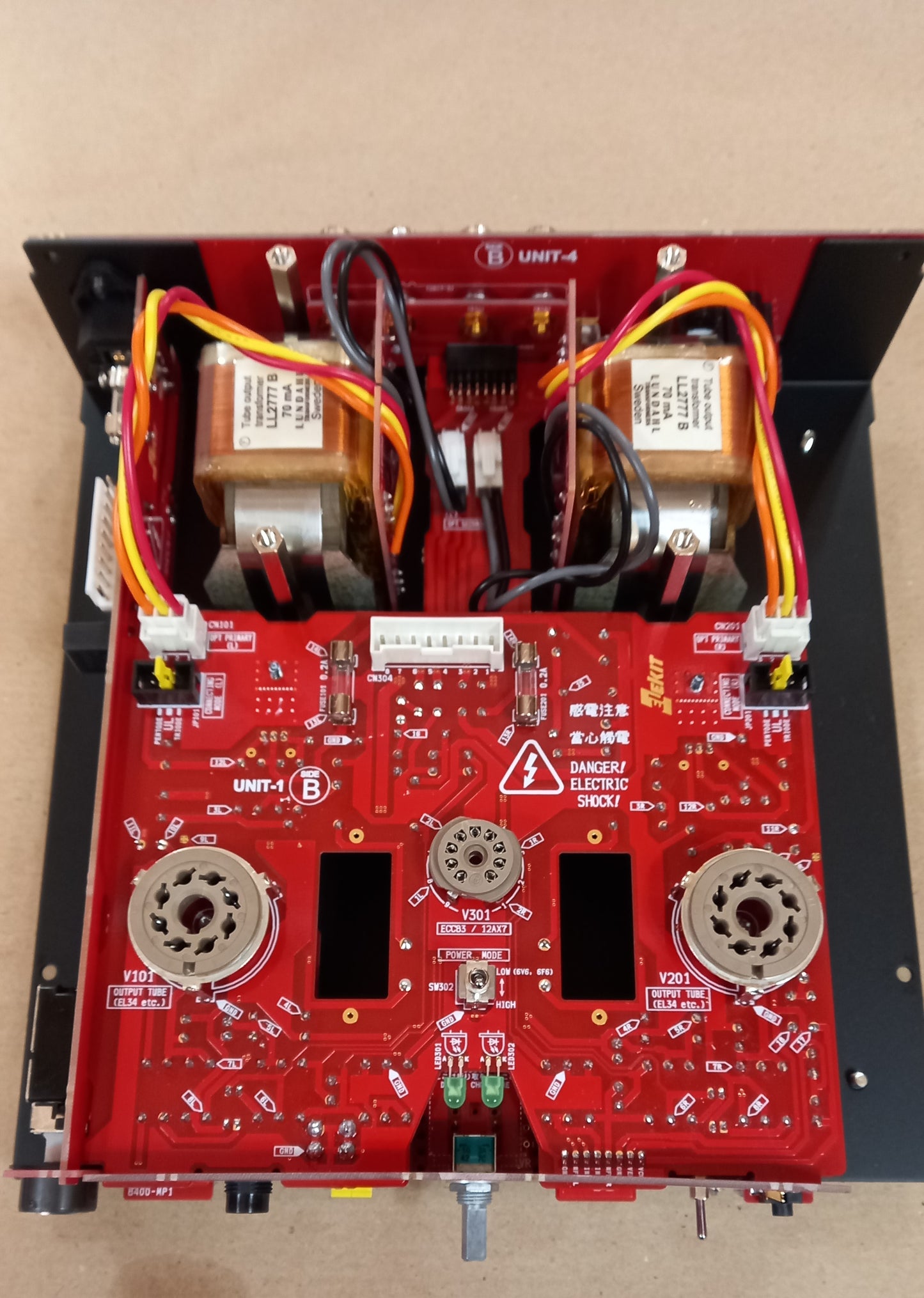

Standard Kit
The standard TU-8400 kit is supplied without tubes and with the standard kit output transformers.
