Most cartridge manufacturers quote a stylus lifespan somewhere between 500 and 1,000 hours. That range is real — but it assumes conditions that most real-world listening sessions don't meet. Depending on what you play and how clean your records are, your stylus may be wearing at a rate significantly faster than the manufacturer's number implies.
The more pressing problem: most collectors have no idea how many hours their stylus has accumulated. And a stylus doesn't announce itself when it starts damaging records. By the time you can hear the degradation, the wear is well advanced.
What stylus wear actually is
Stylus wear follows a principle established in tribology — the study of friction and wear — by J.F. Archard in 1953. Archard's wear equation states that wear is proportional to sliding distance: the further a surface slides against another under load, the more it wears.
Applied to a stylus, the implication is direct: the more groove the stylus travels, the more it wears. Each play of each record accumulates distance. That distance is the clock your stylus is running on, whether you're tracking it or not.
The manufacturer's hour rating is a baseline — it assumes a mid-geometry stylus playing clean records at 33⅓ RPM under the recommended tracking force. Change any of those variables, and the effective lifespan changes with them.
The 45 RPM factor
The groove velocity of a record — how fast the groove wall moves past the stylus tip — varies with rotation speed. At 33⅓ RPM, the groove velocity at the outer edge is approximately 51 cm/s. At 45 RPM, it's approximately 69 cm/s at the outer edge.
That ratio — 69 divided by 51 — is 1.35.
By Archard's law, a stylus playing a 45 RPM record is accumulating wear at 1.35 times the rate of the same stylus playing a 33⅓ RPM record for the same duration. A one-hour session of 45s is wearing your stylus as fast as an 81-minute session of albums.
If you play a significant proportion of 45s — singles, 12-inch dance releases, EPs — this factor compounds across every session. A stylus rated to 1,000 hours under standard conditions reaches the equivalent of 1,000 hours of wear in approximately 740 actual hours of 45 RPM playback.
The contamination factor
The second variable is the cleanliness of the records themselves.
Research by Harold D. Weiler, published in 1954, established that playing contaminated records — records with groove debris not removed by cleaning — increases stylus wear by up to 1.6 times compared to playing clean records. The debris in vinyl grooves acts as an abrasive compound. Rather than the stylus sliding against vinyl, it's sliding against a mixture of vinyl, atmospheric dust, silica particles and diamond dust shed from the stylus itself on previous plays.
(For a full explanation of how groove contamination accumulates and compounds, see how often to clean vinyl records.)That 1.6× figure isn't a catastrophic scenario — it's what Weiler found under conditions representative of normal home playback, where records are played without cleaning between sessions.
A record that hasn't been treated with Record Restore for ten or more plays is, by this model, accumulating stylus wear at 1.6 times the clean-record rate. The groove is abrasive. The stylus life is shortening faster than the clock would suggest.
The combination: up to 2.16×
Play an uncleaned record at 45 RPM and both factors apply simultaneously.
1.35 × 1.6 = 2.16
A stylus rated to 1,000 hours under ideal conditions, playing dirty 45s, reaches equivalent wear in roughly 460 hours. Less than half the rated life. And that's before accounting for tracking force, stylus geometry, environmental particulates or the static charge that draws contamination into the groove in the first place.
These aren't worst-case extremes invented to sell cleaning products. The 1.35× figure comes from groove velocity physics. The 1.6× figure comes from a funded laboratory study. Their combination is arithmetic.
Modern stylus geometry makes this worse
Stylus geometry has evolved considerably since the early conical designs. The elliptical stylus, introduced by Grado in 1964, offered better groove tracing. Later designs — Shibata, micro-line, micro-ridge — narrowed the stylus tip further still, reaching minor axis dimensions as small as 2.5 micrometres on high-end cartridges.
The tracing accuracy of these modern geometries is excellent. Their tolerance for contamination is not.
A conical stylus rides relatively high in the groove, making contact with a broader surface area. A micro-line stylus sits deeper, tracing the groove modulation more precisely — and making contact with a narrower zone where fine particles concentrate. The smaller the contact patch, the greater the pressure per unit area, and the more aggressive the interaction with groove debris.
A high-specification cartridge fitted with a micro-line or micro-ridge stylus is not more forgiving of dirty records than a budget conical. It is considerably less forgiving. The investment in cartridge quality is not an investment in durability against contamination.
A worn stylus damages records before you hear it
This is the critical point that most collectors underestimate.

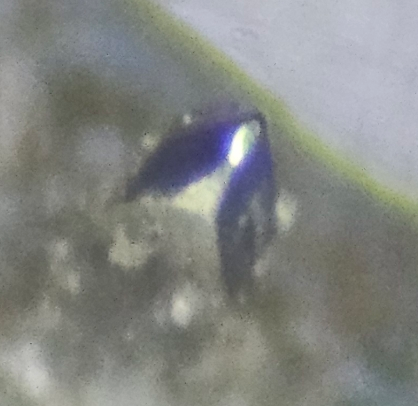

Stylus degradation is not binary — it doesn't perform perfectly until it fails. It degrades gradually, and the earliest stages of wear affect record groove integrity before they affect the audible output in any obvious way. A worn stylus tip develops flat spots or asymmetric rounding that increases lateral pressure on the groove wall. That pressure damages the groove. The record is being harmed before the playback sounds wrong.
By the time a worn stylus produces clearly audible distortion, it has typically been damaging records for some time. The symptom appears after the problem is already established.
This is why monitoring stylus hours — not just listening for degraded output — matters.
How VRT tracks this
VRT logs every listening session: the album played, the cartridge and tonearm configuration, the date and the duration. From that log, it derives cumulative stylus hours per cartridge.
It also applies the relevant wear multipliers: a 1.35× adjustment for 45 RPM sessions, and a 1.6× adjustment for records that haven't been treated with Record Restore within the last ten plays. The hours displayed aren't raw clock time — they're wear-adjusted hours, calibrated to the actual stress the stylus has experienced.
You set a service threshold for each cartridge — the hour figure at which you want to be prompted to inspect or replace the stylus. VRT tracks against that threshold and surfaces the alert when you reach it.
The result is a stylus wear estimate grounded in what you've actually played and how clean those records were — not a guess, and not a clock that ignores the conditions it ran under.
The companion problem
Stylus wear and record contamination are the same problem from two directions. Contaminated records accelerate stylus wear. A worn stylus accelerates groove damage. The two compound each other.
The practical response is to manage both in parallel: clean records consistently with Record Restore to reduce contamination in the groove, and track stylus hours with VRT to know when service is due. Neither alone closes the loop.
Written by Stephen Price, founder of Secret Chord Analogue. Secret Chord Analogue makes Record Restore, VRT and VSS — a complete system for vinyl care, tracking and protection.
